MIL-STD-1553 VIP

The MIL-STD-1553 Verification IP is compliant with MIL-STD-1553B specification and verifies MIL-STD-1553 interfaces. It includes an extensive test suite covering most of the possible scenarios. It performs all possible protocol tests in a directed or a highly randomized fashion which adds the possibility to create most wide range of scenarios to verify the DUT effectively.

MIL-STD-1553 VIP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env



Features

  • Compliant with MIL-STD-1553B Standard.

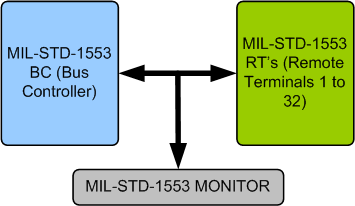

  • Support Remote terminal, Bus Controller and Bus Monitor.
  • Supports configurable length of word length, default 20 bits.
  • Supports configurable length of data bits, default 16.
  • Supports configurable message length per transfer.
  • Supports NRZ and Manchester encoding.
  • Supports single or multi bus control.
  • Supports following message formates
    • Controller to terminal
    • Terminal to controller
    • Terminal to terminal
    • Broadcast
    • System control
  • Glitch injection and detection
  • Supports upto 31 remote terminals
  • Supports all types of errors insertion/detection as given below:
    • Sync error
    • Parity error
    • NRZ or Manchester encoding error
    • Glitch injection
    • Oversize message error
    • Undersize message error
    • Driving X onto bus
    • Various illegal values errors
    • Inter message gap error
    • Terminal response time error
  • Supports testcases from following standards
    • MIL-HDBK-1553 Remote Terminal Validation Test Plan Notice 1
    • MIL-HDBK-1553A Remote Terminal Validation Test Plan Section 100
    • SAE AS-4111 Remote Terminal Validation Test Plan
    • SAE AS-4112 Remote Terminal Production Test Plan
    • SAE AS-4113 Bus Controller Validation Test Plan
    • SAE AS-4114 Bus Controller Production Test Plan
    • SAE AS-4116 Bus Monitor Test Plan
  • On-the-fly protocol and data checking.
  • Notifies the testbench of significant events such as transactions, warnings, and protocol violations.
  • Status counters for various events on bus.
  • Callbacks in Bus Controller and Remote Terminal for various events.
  • Built in functional coverage analysis.
  • MIL-STD-1553 Verification IP comes with complete testsuite to verify each and every feature of MIL-STD-1553B specification.

Benefits

  • Faster testbench development and more complete verification of MIL-STD-1553 designs.
  • Easy to use command interface simplifies testbench control and configuration of Bus Controller and Remote Terminal.
  • Simplifies results analysis.
  • Runs in every major simulation environment


MIL-STD-1553 Verification Env

SmartDV's MIL-STD-1553 Verification env contains following.

  • Complete regression suite containing all the MIL-STD-1553 testcases.
  • Examples's showing how to connect various components, and usage of Bus Controller and Remote Terminal and Monitor.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation also contains User's Guide and Release notes.
