MII/SMII/RMII/GMII/RGMII VIP

MII/SMII/RMII/GMII/RGMII VIP

The 10/100/1G Ethernet Verification IP is compliant with IEEE 802.3 specifications and verifies MAC-to-PHY layer interfaces of designs with a 10/100/1000M Ethernet interface MII/SMII/RMII/GMII/RGMII. It can work with SystemVerilog,Vera, SystemC, E and Verilog HDL environment. Ethernet VIP is developed by experts in Ethernet, who have developed ethernet products in companies like Intel, Cortina-Systems, Emulex, Cisco. We know what it takes to verify a ethenet product.

MII/SMII/RMII/GMII/RGMII VIP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

MII/SMII/RMII/GMII/RGMII VIP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Features
  • Follows MII/SMII/RMII/GMII specification as defined in IEEE 802.3
  • Follows RGMII specification 2.0
  • Supports all types of MII/SMII/RMII/GMII/RGMII TX and RX errors insertion/detection
  • Support 10/100/1000M speed of operation for SGMII
  • Supports injection of following errors
    • Oversize, undersize, inrange, out of range Packet size errors
    • Missing SFD framing errors
    • CRC Error
    • Variable preamble and IPG insertion
    • Invalid nibble
  • Comes with MII/SMII/RMII/GMII/RGMII Tx BFM, MII/SMII/RMII/GMII/RGMII Rx BFM, and MII/SMII/RMII/GMII/RGMII Monitor
  • Monitor supports detection of all protocol violations
  • Supports Pause frame generation and detection
  • Built in coverage analysis
  • Callbacks in master and slave for various events
  • Status counters for various events in bus
Benefits
  • Faster testbench development and more complete verification of MII/SMII/RMII/GMII/RGMII designs
  • Easy to use command interface simplifies testbench control and configuration of MII/SMII/RMII/GMII/RGMII TX and RX
  • Simplifies results analysis
  • Runs in every major simulation environment

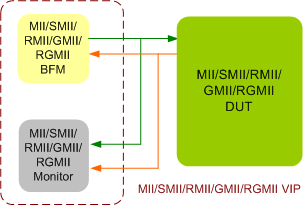

MII/SMII/RMII/GMII/RGMII Verification Env

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's MII/SMII/RMII/GMII/RGMII Verification env contains following.

  • Complete regression suite (UNH) containing all the testcases.
  • Examples showing how to connect various components, and usage of TXRX BFM and Monitor.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation also contains User's Guide and Release notes.
