Products

GDDR5 DFI VIP

GDDR5 DFI VIP

GDDR5 DFI Verification IP provides an smart way to verify the GDDR5 DFI component of a SOC or a ASIC. The SmartDV's GDDR5 DFI Verification IP is fully compliant with standard DFI Specification and provides the following features.

GDDR5 DFI VIP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

GDDR5 DFI VIP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Features
  • Compliant with DFI version 4.0 and 5.0 Specifications.
  • Supports GDDR5 devices compliant with JEDEC GDDR5 SGRAM Standard JESD212 and JESD212C.
  • Supports all Interface Groups.
  • Supports Write Transactions with Data mask.
  • Supports DRAM Clock disabling feature.
  • Supports Data bit enable/disable feature.
  • Supports 1:1, 1:2 and 1:4 MC to PHY frequency ratio.
  • Supports frequency change protocol.
  • Supports Low power control features.
  • Supports Error signaling.
  • Supports DFI Read/Write Chip Select.
  • Supports all types of timing and protocol violations detection for timing parameters like tphy_wrlat, tphy_wrdata, trd_dataen and tphy_rdlat delays.
  • Constantly monitors DFI behavior during simulation.
  • Protocol checker fully compliant with DFI 4.0 and 5.0 Specifications.
  • Bus-accurate timing for min, max and typical values.
  • Notifies the test bench of significant events such as transactions, warnings.
  • Built in functional coverage analysis.
  • Supports callbacks, so that user can access the data observed by monitor.
Benefits
  • Faster test bench development and more complete verification of GDDR5 DFI designs.
  • Easy to use command interface simplifies monitor control and configuration.
  • Simplifies results analysis.
  • Runs in every major simulation environment.

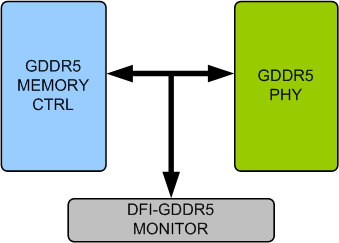

GDDR5 DFI Verification Env

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's GDDR5 DFI Verification env contains following.

  • Complete regression suite containing all the GDDR5 DFI testcases.
  • Complete UVM/OVM sequence library for GDDR5 DFI controller.
  • Examples showing how to connect and usage of Model.
  • Detailed documentation of all classes, tasks and functions used in verification env.
  • Documentation also contains User's Guide and Release notes.
