SPI/RTC Verification IP

SPI/RTC Verification IP

SPI/RTC (Real time counter) Verification IP provides an smart way to verify the serial synchronous communication protocol.The SmartDV's SPI/RTC Verification IP is fully compliant with SPI Block Guide V04.01 of the Motorola's M68HC11 user manual rev 5.0 SPI-Bus Specification and DS3234 maxim_spi_rtc and provides the following features. It can work with Verilog HDL environment and works with all Verilog simulators that are support SystemVerilog.

SPI/RTC Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

SPI/RTC Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Features
  • Follows RTC basic specification as defined in DS3234 maxim_spi_rtc.
  • Support Master and Slave Mode.
  • Supports data width of 8 bit.
  • Support baud rate selection.
  • Support internal clock division check.
  • Support single and burst transfer mode.
  • Support on the fly generation of data.
  • Supports constraints Randomization.
  • Glitch insertion and detection.
  • Built in functional coverage analysis.
  • Status counters for various events on bus.
  • Supports single,dual bus width operation.
  • Supports Callbacks in master, slave and monitor for modifying, and sampling data/cmd on SPI/RTC.
  • SPI/RTC Slave can be configured as standard device or can use FIFO for data passing.
  • Master contains rich set of commands for both standard device and FIFO model mode.
  • Notifies the test bench of significant events such as transactions, warnings, and protocol violations. This can be written to separate log files.
  • SPI/RTC Verification IP comes with complete test suite to test every feature of SPI/RTC specification.
Benefits
  • Faster testbench development and more complete verification of SPI/RTC designs.
  • Easy to use command interface simplifies testbench control and configuration of slave and master.
  • Simplifies results analysis.
  • Runs in every major simulation environment.

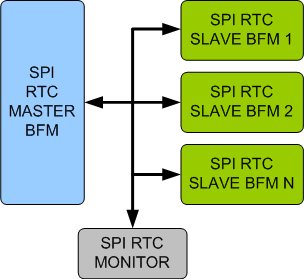

SPI/RTC Verification Env

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's SPI/RTC Verification env contains following.

  • Complete regression suite containing all the SPI/RTC testcases.
  • Examples showing how to connect various components, and usage of Master, Slave and Monitor.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation contains User's Guide and Release notes.
