MPCIE Verification IP

MPCIE Verification IP

MPCIE Verification IP provides an smart way to verify the PCIE bi-directional bus. The SmartDV's MPCIE Verification IP is fully compliant with version 1.0/2.0/3.0/4.0/5.0 of the PCIE Specification and provides the following features

MPCIE Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

MPCIE Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Features
  • Supports PCIE Express specs 1.0/2.0/3.0/4.0/5.0
  • Supports MPHY RMMI and serial interface
  • - > All error injections in MPHY layer
  • - > All protocol checks for MPHY layer
  • - > All PWM and HS gears as supported by MPCIe
  • - > All lane configurations as supported by MPCIe
  • - > Automatic clock recovery for HS mode
  • Supports asymmetrical lane configuration
  • Supports dynamic bandwidth scalability as per specs
  • Supports both Rate A and Rate B
  • Supports UVM and Verilog APIs supplied , as well as C DPI exports
  • Supports Full link speed and width negotiation up to 32 Lanes
  • Supports Automated Error Injections at all layers.
  • Supports Checkers verify protocol timing checks and functional accuracy at each layer
  • Supports Queuing for 8 VCs with configurable depth
  • Supports Configurable TC to VC queue mapping
  • Supports for multiple Requestor / Completer applications, including user supplied applications
  • Supports Checks all TLPs for correct formation of headers, prefixes, and ECRC
  • Supports Full DL state machines
  • Supports Checks all framing, LCRC, and lane rules
  • Supports Check all DLLP fields and formatting
  • Supports ASPM and Software controlled Power Management
  • Supports Automated Error Injections and checking
  • Supports Full LTSSM state machine
  • Supports SERDES model with digital clock recovery
  • Supports Speed and Link Width negotiation
  • Supports Upconfigure, polarity inversion, and lane-to-lane skew
  • Supports 8b/10b encoding
  • Supports Configurable timers and timeouts
  • Callbacks in Root complex,End point and monitor for user processing of data
  • Notifies the testbench of significant events such as transactions, warnings, timing and protocol violations
  • MPCI Express Verification IP comes with complete testsuite to test every feature of PCI Express specification
  • Supports scoreboard checking
  • Built-in monitors for protocol checking, including a global bus monitor
  • Functional coverage to cover all functionality of MPCIE Root complex and End point
  • Supports multiple instantiations to create complex verification environment
  • Supports Scaled Flow control
  • Supports Data Link Feature Exchange
  • Supports VF 10-Bit Tag Requester
  • Supports Enhanced Allocation
  • Supports Emergency Power Reduction State
  • Supports Alternate Routing-ID Interpretation
  • Supports Protocol Multiplexing
Benefits
  • Faster testbench development and more complete verification of MPCI Express designs
  • Easy to use command interface simplifies testbench control and configuration of Root complex and End point
  • Simplifies results analysis
  • Runs in every major simulation environment

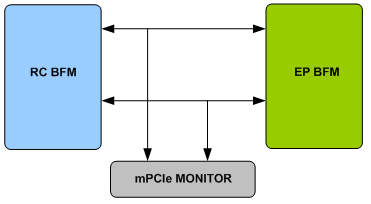

MPCIE Verification Env

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's MPCIE Verification env contains following

  • Complete regression suite containing all the MPCIE testcases to certify MPCI Express Root complex and End point
  • Examples showing how to connect various components, and usage of BFM and Monitor
  • Detailed documentation of all class, task and function's used in verification env
  • Documentation also contains User's Guide and Release notes
