JESD403 VIP

JESD403 VIP

The SmartDV Verification IP (VIP) for JESD403 provides an efficient and simple way to verify the JESD403 bidirectional two-wire serial interface. The SmartDV VIP is fully compliant with version 1.0 specifications.

JESD403 VIP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

JESD403 VIP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Features
  • Compliant with JESD403 version 1.0 specification.
  • Full JESD403 Host Controller and Device functionality.
  • Two wire serial interface up to 12.5 MHz.
  • Supports Dynamic Address Assignment including Static Addressing for legacy I2C Devices.
  • In-Band Interrupt support.
  • Support for all JESD403 Common Command Codes (CCC's).
  • 7-bit configurable Slave Address.
  • Supports HOST DEVICE ADDRESS.
  • Supports Timed reset.
  • Supports Write/Read formats.
  • Supports PEC enable/disable.
  • Master SCL clock stalling is supported.
  • Slave supports control of response fields including NACK, Data and Slave busy.
  • Supports slave error types S1 and S2.
  • Supports injection of various errors.
    • Master aborting in middle of access
    • Master doing ACK on last read access
  • Callbacks in Master, Slave and Monitor for user processing of data
  • Notifies the testbench of significant events such as transactions, warnings, timing and protocol violations.
  • Functional coverage of complete JESD403 specs.
  • JESD403 Verification IP comes with complete testsuite to test every feature of JESD403 specification.
Benefits
  • Faster testbench development and more complete verification of JESD403 designs.
  • Easy to use command interface simplifies testbench control and configuration of TX and RX.
  • Simplifies results analysis.
  • Runs in every major simulation environment.

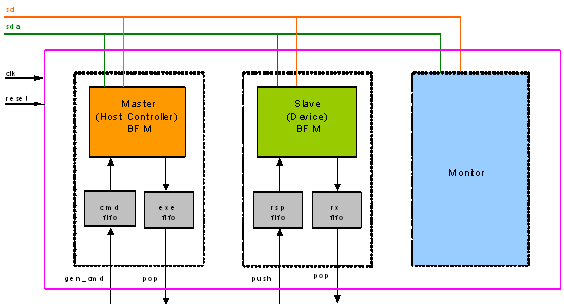

JESD403 Verification Env

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's JESD403 Verification env contains following.

  • Complete regression suite containing all the JESD403 testcases to certify JESD403 Slave/Master device
  • Examples showing how to connect various components and usage of Master, Slave and Monitor.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation also contains User's Guide and Release notes.
