The Ethernet 10G Verification IP is compliant with IEEE 802.3 Specification and verifies MAC-to-PHY and PHY-to-MAC layer interfaces of designs with a Ethernet 10G interface. It can work with SystemVerilog, Vera, SystemC, E and Verilog HDL environment.Ethernet 10G verification IP is developed by experts in Ethernet, who have developed ethernet products in companies like Intel, Cortina-Systems, Emulex, Cisco. We know what it takes to verify a ethernet product.
Ethernet 10G Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env
Ethernet 10G Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.
- Features
-
- Supports 10G as per specification IEEE 802.3-2018
- Supports XGMII(32 and 64 Width)
- Supports XGMII_R(32 and 64 Width)
- Supports XTBI (i.e Output of 8b/10b PCS)
- Supports XAUI,RXAUI,DXAUI,RXTBI and 10GBASE-KX4
- Supports 10GBASE-KR with scrambler
- Supports FEC for 10GBase-KR
- Supports scrambler
- Supports backplane auto-negotiation for 10GBase-KX4 and 10GBase-KR
- Supports USXGMII
- Supports single port USXGMII as per specification 2.5
- Supports multi-port USXGMII as per specification 2.2
- XSBI Interface (16-bit)
- XSBI Interface (20-bit)
- Supports Link training
- Supports G.999.1 Interface
- Ethernet Verification IP comes with complete UNH Test suite
- Supports the Upper layer protocols
- Supports IP in IP
- Supports Q in Q
- Full support for IEEE 802.1AZ (Energy Efficient Ethernet)
- Full support for IEEE 1588-2002 and IEEE 1588-2008
- PCS to Serdes interface supports all widths
- Supports CDR for serial protocols
- Supports WAN Interface Sublayer (WIS), type 10GBASE-W
- Supports MDIO slave and master model as per Clause 22 and Clause 45
- Supports Glitch insertion and detection
- Supports all types of TX and RX errors insertion/detection at each layer.
- Under and oversize frame.
- CRC errors
- Framing errors
- Pause frame errors
- Disparity and Auto-negotiation errors
- Invalid code group insertion
- Invalid /K/ characters insertion
- Lane Skew insertion
- Invalid AN sequence error insertion
- Missing /K/ characters for packet boundries.

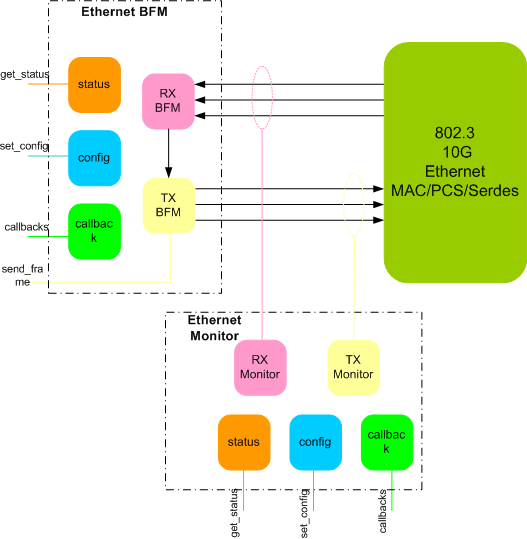

- Comes with Tx BFM, Rx BFM, and Monitor
- Monitor supports detection of all protocol violations
- Supports Pause frame generation and detection
- Built in coverage analysis
- Callbacks in master and slave for various events
- Status counters for various events in bus
- Benefits
-
- Faster testbench development and more complete verification of Ethernet 10G designs.
- Easy to use command interface simplifies testbench control and configuration of Ethernet 10G TX and RX.
- Simplifies results analysis.
- Runs in every major simulation environment.
- Ethernet 10G Verification Env
-
SmartDV's Ethernet 10G Verification env contains following.
- Complete regression suite containing all the testcases.
- Examples showing how to connect various components, and usage of TX,RX BFM and Monitor.
- Detailed documentation of all class, task and function's used in verification env.
- Documentation also contains User's Guide and Release notes.
