CAN XL Verification IP

CAN XL Verification IP

CAN XL Verification IP is an advanced solution in the market for the verification of CiA 610-1 and CiA 611-1 implementations. It is adherent with CiA 610-1 & CiA 611-1 Verification IP (plus addendum specification) and it supports all frame types such as CAN XL, Overload and Error frames. The CAN XL Verification IP monitor acts as powerful protocol-checker, fully compliant with CiA 610-1 & CiA 611-1 specification.

CAN XL Verification IP includes an extensive test suite covering most of the possible scenarios and CAN XL conformance norms. It can perform all protocol tests as testbench Bosch and moreover it allows an easy generation of very high number of patterns and a set of specified patterns to stress the DUT.

CAN XL Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

CAN XL Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Features
  • Adherent to CiA 610-1 & CiA 611-1 specifications and its Conformance test plans
  • Supports CAN XL with flexible data rate.
  • Full CAN TX/RX functionality.
  • Supports Full Duplex of operations.
  • Supports test cases as per standard
    • CiA 610-2 Conformance test plan for CiA 610-1
    • CiA 611-2 Conformance test plan for CiA 611-1
  • Supports all types of frames.
    • CAN XL frame
    • Error frames
    • Overload frames
  • Supports all types of error insertion and detection.
    • Bit error
    • Stuff error
    • CRC error
    • Form error
    • ACK error
    • PCRC error
  • Supports SDU types as per 611_1v00000701.pdf specification.
  • Supports transceiver mode interface.
  • The transceiver mode switching is initiated and maintained through the PWM encoding function.
  • Tracks TEC/REC error counter and fault states.
  • Supports Glitch insertion and detection.
  • Monitors, detects and notifies the test bench of significant events such as transactions, warnings, timing and protocol violations.
  • Supports constraints Randomization.
  • Status counters for various events on bus.
  • Callbacks in node transmitter, receiver and monitor for user processing of data.
  • Re-transmission of corrupted messages.
  • CAN XL Verification IP comes with complete test suite to test every feature of specification and conformance test plan.
  • Functional coverage for complete CAN XL features.
Benefits
  • Faster testbench development and more complete verification of CAN XL designs.
  • Easy to use command interface simplifies testbench control and configuration of Tx and Rx.
  • Simplifies results analysis.
  • Runs in every major simulation environment.

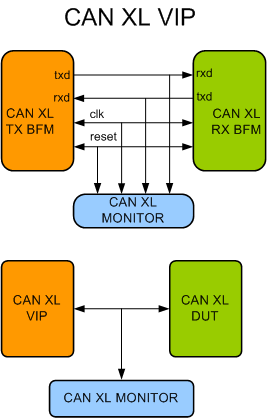

CAN XL Verification Env

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's CAN XL Verification env contains following.

  • Complete regression suite containing all the CAN XL testcases as per conformance test plan.
  • Examples showing how to connect various components, and usage of Tx,Rx and Monitor.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation contains User's Guide and Release notes.
