Products

10BASE-T1S Verification IP

10BASE-T1S Verification IP

The 10BASE-T1S Verification IP is compliant with IEEE 802.3 Specification and verifies MAC-to-PHY and PHY-to-MAC layer interfaces of designs with a 10BASE-T1S interface. It can work with SystemVerilog, Vera, SystemC, E and Verilog HDL environment.10BASE-T1S verification IP is developed by experts in Ethernet, who have developed ethernet products in companies like Intel, Cortina-Systems, Emulex, Cisco. We know what it takes to verify a ethernet product.

10BASE-T1S Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

10BASE-T1S Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Features
  • Supports 10BASE-T1S as per specification IEEE 802.3cg-2019
    • Supports MII
    • Supports Self-synchronizing Scrambler/Descrambler
    • Supports 4b/5b Encoding/Decoding
    • Supports DME(Differential Manchester Encoding)
    • Supports full duplex and half duplex operation
    • Supports clause 98 auto-negotiation
    • Supports PLCA (Physical layer Collision Avoidance)
  • Supports MDIO slave and master model as per Clause 22 and Clause 45
  • Supports G.999.1 Interface
  • 10BASE-T1S Verification IP comes with complete UNH Test suite
  • Supports the Upper layer protocols
  • Supports IP in IP
  • Supports Q in Q
  • Full support for IEEE 802.1AZ (Energy Efficient Ethernet)
  • Full support for IEEE 1588-2002,IEEE 1588-2008 and IEEE 1588-2019
  • Supports Pause frame generation and detection
  • Supports all types of TX and RX errors insertion/detection at each layer.
    • Under and oversize frame.
    • CRC errors
    • Framing errors
    • Pause frame errors
    • Disparity and Auto-negotiation errors
    • Invalid symbol insertion
    • Invalid AN sequence error insertion
  • Comes with Tx BFM, Rx BFM, and Monitor
  • Monitor supports detection of all protocol violations
  • Built in coverage analysis
  • Callbacks in master and slave for various events
  • Status counters for various events in bus
Benefits
  • Faster testbench development and more complete verification of 10BASE-T1S designs.
  • Easy to use command interface simplifies testbench control and configuration of 10BASE-T1S TX and RX.
  • Simplifies results analysis.
  • Runs in every major simulation environment.

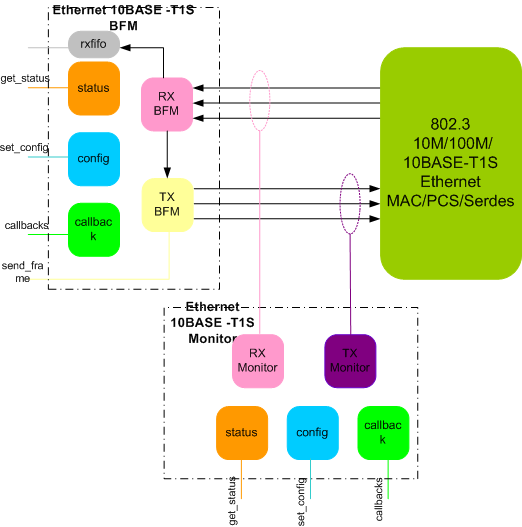

10BASE-T1S Verification Env

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's 10BASE-T1S Verification env contains following.

  • Complete regression suite containing all the testcases.
  • Examples showing how to connect various components, and usage of TX,RX BFM and Monitor.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation also contains User's Guide and Release notes.
