Products

Xccela Flash Memory Model

Xccela Flash Memory Model

Xccela Flash Memory Model provides an smart way to verify the Xccela Flash component of a SOC or a ASIC. The SmartDV's Xccela Flash memory model is fully compliant with standard Xccela Flash Specification and provides the following features. Better than Denali Memory Models.

Xccela Flash Memory Model is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

Xccela Flash Memory Model comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Features
  • Supports Xccela Flash memory devices like MT35X_QLJW_U_256_ABA/ MT35X_QLKA_L_01G_BBA/ MT35X_QLKA_U_02G_CBA from all leading vendors
  • Supports 100% of Xccela Flash protocol Standards.
  • Supports all the Xccela Flash commands as per the specs.
  • Supports Single and double transfer rate (SDR/DDR)
  • Supports following protocols
    • Octal DDR protocol
    • Extended-SPI protocol with octal commands
  • Supports Execute-in-place (XIP).
  • Supports volatile and nonvolatile configuration settings.
  • Supports software reset.
  • Supports 3-byte and 4-byte addressing modes
  • Supports 64-byte OTP area outside main memory.
    • Readable and user-lockable
    • Permanent lock with Program OTP commands
  • Supports Program/Erase/Suspend operation.
  • Supports the following Erase capability
    • Bulk erase
    • Sector erase 128KB uniform granularity
    • Subsector erase 4KB, 32KB granularity
  • Supports security and write protection
    • Volatile and nonvolatile locking and software write protection
    • Nonvolatile configuration locking
    • Password protection
    • Hardware write protection
    • CRC
  • Supports all types of timing and protocol violation detection.
  • Constantly monitors Xccela Flash behavior during simulation.
  • Protocol checker fully compliant with Xccela Flash Specification.
  • Models, detects and notifies the test bench of significant events such as transactions, warnings, timing and protocol violations.
  • Built in functional coverage analysis.
  • Supports Callbacks, so that user can access the data observed by monitor.
Benefits
  • Faster testbench development and more complete verification of Xccela Flash designs.
  • Easy to use command interface simplifies monitor control and configuration.
  • Simplifies results analysis.
  • Runs in every major simulation environment.

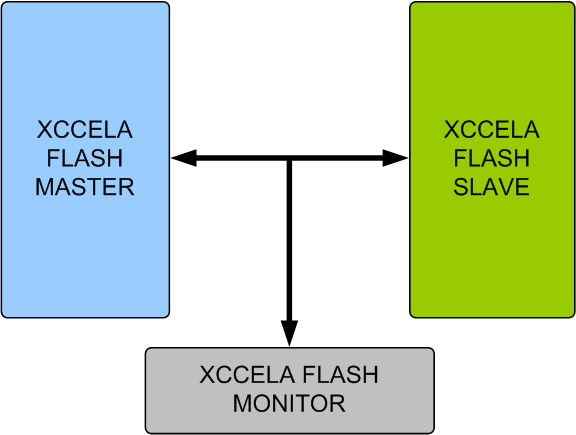

Xccela Flash Verification Env

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's Xccela Flash Verification env contains following.

  • Complete regression suite containing all the Xccela Flash testcases.
  • Examples showing how to connect and usage of Model.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation also contains User's Guide and Release notes.
