LPDDR2 DFI Verification IP

LPDDR2 DFI Verification IP

LPDDR2 DFI Verification IP provides an smart way to verify the LPDDR2 DFI component of a SOC or a ASIC. The SmartDV's LPDDR2 DFI Verification IP is fully compliant with standard DFI Specification and provides the following features.

LPDDR2 DFI Verification IP is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

LPDDR2 DFI Verification IP comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Features
  • Compliant with DFI version 2.1 or higher Specifications.
  • Supports LPDDR2 devices compliant with JEDEC LPDDR2 SDRAM Standard JESD209-2F.pdf and JESD209-2E.pdf
  • Supports for Read data-eye training
  • Supports for Read gate training
  • Supports for Write date-eye training
  • Supports for DFI disconnect during training
  • Supports for X8, X16 and X32 modes.
  • Supports for ZQ/DQ calibration.
  • Supports for Overlay window Enable/Disable.
  • Supports for Write data Mask.
  • Supports for Power Down and Deep Power Down features.
  • Supports for Auto Precharge option for each burst access
  • Supports for Programmable burst length: 4, 8, and 16.
  • Supports for the Sequential and Interleave burst types.
  • Supports for input clock stop and frequency change.
  • Supports DRAM Clock disabling feature.
  • Supports Error signaling.
  • Supports Independent Operation & Multi-Configuration Support for LPDDR2.
  • Supports all types of timing and protocol violations detection for timing parameters.
  • Constantly monitors DFI behavior during simulation.
  • Protocol checker fully compliant with DFI 2.1 or higher Specifications.
  • Bus-accurate timing for min, max and typical values.
  • Notifies the test bench of significant events such as transactions, warnings.
  • Built in functional coverage analysis.
  • Supports callbacks, so that user can access the data observed by monitor.
Benefits
  • Faster test bench development and more complete verification of LPDDR2 DFI designs.
  • Easy to use command interface simplifies monitor control and configuration.
  • Simplifies results analysis.
  • Runs in every major simulation environment.

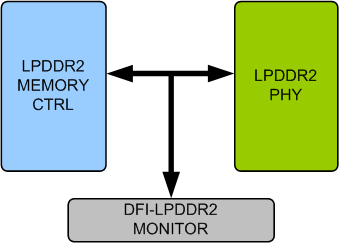

LPDDR2 DFI Verification Env

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's LPDDR2 DFI Verification env contains following.

  • Complete regression suite containing all the LPDDR2 DFI testcases.
  • Complete UVM/OVM sequence library for LPDDR2 DFI controller.
  • Examples showing how to connect and usage of Model.
  • Detailed documentation of all classes, tasks and functions used in verification env.
  • Documentation also contains User's Guide and Release notes.
