DDR5 DIMM Memory Model

DDR5 DIMM Memory Model

DDR5 DIMM Memory Model provides an smart way to verify the DDR5 DIMM component of a SOC or a ASIC. The SmartDV's DDR5 DIMM memory model is fully compliant with standard DDR5 DIMM Specification and provides the following features. Better than Denali Memory Models.

DDR5 DIMM Memory Model is supported natively in SystemVerilog, VMM, RVM, AVM, OVM, UVM, Verilog, SystemC, VERA, Specman E and non-standard verification env

DDR5 DIMM Memory Model comes with optional Smart Visual Protocol Debugger (Smart ViPDebug), which is GUI based debugger to speed up debugging.

Features
  • Supports DDR5 DIMM memory devices from all leading vendors.
  • Supports 100% of DDR5 DIMM protocol standard.
  • Supports DDR5 RDIMM and LRDIMM types.
  • Supports all the DDR5 DRAM features.
  • Supports up to 64GB device density.
  • Supports the following devices.
    • X4
    • X8
    • X16
  • Supports all speed grades as per specification.
  • Supports CA, CS and Read Preamble training modes.
  • Supports MIR, CAI and 2N mode operations.
  • Supports Read training pattern.
  • Supports Write leveling training mode.
  • Supports Programmable Write latency and Read latency.
  • Supports Programmable Preamble, Postamble and Interamble.
  • Supports Programmable burst lengths: 8, 16 and 32.
  • Supports Sequential burst type and Burst order.
  • Supports all mode register programming.
  • Supports Write data mask and Write Pattern command.
  • Supports CRC for Write, Read and MRR operations.
  • Supports Self Refresh and Power down operation.
  • Supports Self Refresh Entry with frequency change (SREF)
  • Supports Refresh modes and Global refresh counter.
  • Supports Refresh management all command.
  • Supports Refresh management same bank command.
  • Supports Maximum power saving mode.
  • Supports Post Package Repair (PPR).
  • Supports Target row refresh and Loop back concepts.
  • Supports per DRAM Addressability and DLL features.
  • Supports Precharge command modes.
  • Supports Multipurpose Command (MPC).
  • Supports VrefCA and VrefCS commands.
  • Supports VrefCA, VrefCS and VrefDQ training.
  • Supports ZQ calibration and Connectivity Test (CT) mode.
  • Supports input clock stop and frequency change.
  • Supports On-Die Termination (ODT)
  • Checks for following
    • Check-points include power up, initialization and power off rules
    • State based rules, Active Command rules
    • Read/Write Command rules etc.,
    • All timing violations
  • Supports all timing delay ranges in one model: min, typical and max.
  • Protocol checker fully compliant with DDR5 DIMM Specification.
  • Constantly monitors DDR5 DIMM behavior during simulation.
  • Models, detects and notifies the test bench of significant events such as transactions, warnings, timing and protocol violations.
  • Built in functional coverage analysis.
  • Supports Callbacks, so that user can access the data observed by monitor.
Benefits
  • Faster testbench development and more complete verification of DDR5 DIMM designs.
  • Easy to use command interface simplifies monitor control and configuration.
  • Simplifies results analysis.
  • Runs in every major simulation environment.

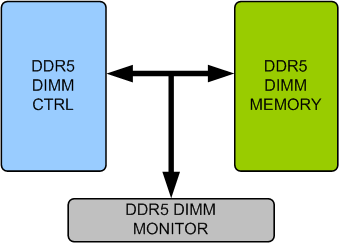

DDR5 DIMM Verification Env

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's DDR5 DIMM Verification env contains following.

  • Complete regression suite containing all the DDR5 DIMM testcases.
  • Examples showing how to connect and usage of Model.
  • Detailed documentation of all class, task and function's used in verification env.
  • Documentation also contains User's Guide and Release notes.
