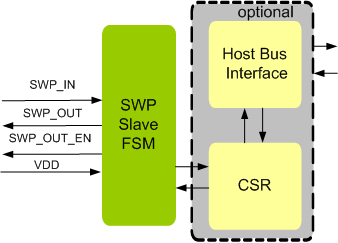

SWP Slave IIP

SWP Slave IIP

SWP Slave is full-featured,easy-to-use,synthesizable design,compatible with ETSI TS 102 613 and ETSI TS 102 221 Specification Complient.Through its SWP Slave compatibility, it provides a simple interface to a wide range of low-cost devices.SWP Slave IIP is proven in FPGA environment. Designed to work with a wide variety of SWP bus variants, the core supports run-time control of several SWP protocol parameters. The host interface of the SWP Slave can be AMBA APB, AMBA AHB, AMBA AHB-Lite, AMBA AXI, AMBA AXI-Lite, VCI, OCP, Avalon, PLB, Tilelink, Wishbone or Custom protocol.

SWP Slave IIP is supported natively in Verilog and VHDL

Features
  • Compliant with ETSI TS 102 613 and ETSI TS 102 221 Specification.
  • Complete SWP Uicc functionality.
  • Supports SWP interface between CLF and UICC
  • Supports different types of layers,
    • Physical layer
    • Data link layer
    • MAC layer
    • LLC layer
  • Supports contacts activation and deactivation
  • Supports ACT LLC, SHDLC LLC and CLT LLC
  • Support SHDLC LLC frame types,
    • I-Frames
    • S-Frames
    • U-Frames
  • Supports configurable timing functions.
    • Acknowledge time
    • Guarding/transmit time
    • Connection time
  • Automatic handling of
    • End of frame (EOF)
    • stuffing bits
    • CRC-16
    • calculation and generation in transmission
    • calculation and checking in reception
  • 32-bit Transmit data register
  • 32-bit Receive data register
  • CRC error, underrun, overrun flags
  • Frame reception and transmission complete flags
  • Slave resume detection flag
  • Exit from Stop 1 mode with a RESUME by slave event
  • Loopback mode for test purpose
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to microprocessor/microcontroller devices
Benefits
  • Single site license option is provided to companies designing in a single site.
  • Multi sites license option is provided to companies designing in multiple sites.
  • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
  • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
Deliverables

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's SWP Slave IP contains following

  • The SWP Slave interface is available in Source and netlist products.
  • The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
  • Easy to use Verilog Test Environment with Verilog Testcases
  • Lint, CDC, Synthesis, Simulation Scripts with waiver files
  • IP-XACT RDL generated address map
  • Firmware code and Linux driver package
  • Documentation contains User's Guide and Release notes.
