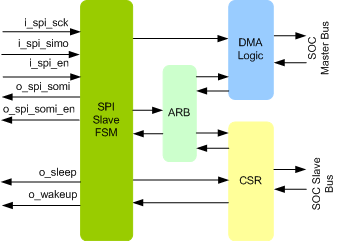

SPI Slave To SOC Bridge IIP

SPI Slave To SOC Bridge IIP

SPI Slave To SOC Bridge interface provides full support for the two-wire SPI synchronous serial interface, compatible with SPI version Block Guide 4.01 standard. Through its SPI compatibility, it provides a simple interface to a wide range of low-cost devices. SPI Slave To SOC Bridge IIP is proven in FPGA environment.The host interface of the SPI can be AMBA APB, AMBA AHB, AMBA AHB-Lite, AMBA AXI, AMBA AXI-Lite, VCI, OCP, Avalon, PLB, Tilelink, Wishbone or Custom protocol.Basically SPI SOC Bridge IP is used to convert SPI into SOC bus protocol.

SPI Slave To SOC Bridge IIP is supported natively in Verilog and VHDL

Features
  • Compliant with the SPI Block Guide 4.01 standard.
  • Full SPI Slave functionality.
  • Converts SPI Transactions into SOC write or read access.
  • Allows external devices to access the internal SOC Bus
  • Useful for updating device software from and external device
  • Useful for reading internal memory mapped registers and memory
  • Supports Mailbox Read/Write functionality
  • Supports SOC Master Read/ Write capability
  • Supports SOC Slave
  • Supports monitoring of erroneous SOC transfers and reports error to the system
  • Supports Single/Dual/Qual/Octal SPI Data line.
  • Support power mode commands also.
  • Supports flexible transfer format to work with slower interfaces
  • Supports address width of 8,16,24 and 32 bits
  • Supports following frames for SPI
    • Sleep Frame
    • Wakeup Frame
    • Write Frame
    • Read Frame
    • Extended Register Write Frame
    • Extended Register Read Frame
    • Extended Register Write Long Frame
    • Extended Register Read Long Frame
    • Extended Register Write Long Long Frame
    • Extended Register Read Long Long Frame
  • Support single and burst transfer mode for SPI
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to microprocessor/microcontroller devices
Benefits
  • Single Site license option is provided to companies designing in a single site.
  • Multi Sites license option is provided to companies designing in multiple sites.
  • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
  • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
Deliverables

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's SPI Slave To SOC Bridge IP contains following.

  • The SPI Slave To SOC Bridge interface is available in Source and netlist products.
  • The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
  • Easy to use Verilog Test Environment with Verilog Testcases
  • Lint, CDC, Synthesis, Simulation Scripts with waiver files
  • IP-XACT RDL generated address map
  • Firmware code and Linux driver package
  • Documentation contains User's Guide and Release notes.
