Serial Flash Controller IIP

Serial Flash Controller IIP

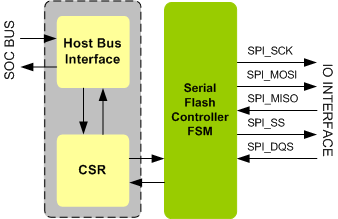

SERIAL_FLASH CONTROLLER interface provides full support for the two-wire SERIAL FLASH CONTROLLER synchronous serial interface,compatible with SERIAL FLASH specification. Through its SERIAL FLASH CONTROLLER compatibility, it provides a simple interface to a wide range of low-cost devices. SERIAL FLASH CONTROLLER IIP is proven in FPGA environment.The host interface of the SERIAL FLASH CONTROLLER can be AMBA APB, AMBA AHB, AMBA AHB-Lite, AMBA AXI, AMBA AXI-Lite, VCI, OCP, Avalon, PLB, Tilelink, Wishbone or Custom protocol.

Serial Flash Controller IIP is supported natively in Verilog and VHDL

Features
  • Compliant with Flash Devices from major Flash Device Vendors
  • Full SPI Master Functionality.
  • Supports Single, Dual, Quad, Octal SPI data widths SOC Master and SOC Slave bus can be APB/AHB/AXI/OCP/Tilelink/Wishbone/VCI/PLB/Avalon or any other protocol listed above.
  • Supports 3 modes of operation
    • Slave Mode – Accessing flash device through CSR registers from SOC Slave interface
    • XIP Mode – eXecute In-Place, where core allows direct access to flash memory from SOC Slave interface.
    • HCI Mode – Descriptor based DMA type access from SOC Master interface
  • Programmable Command Sequence when working in slave mode
  • Supports xSPI (JEDEC’s JESD251), Xccela and Optional Hyperbus standard
  • Supports up to 4 Devices (Can be customized for more devices).
  • Individually Controllable pins to drive chip-select, write protect and hold signal.
  • Extended Address for Access to higher memory density.
  • DDR (Double Data Rate) support.
  • Advanced Sector Protection.
  • Direct Memory Access (DMA) support with Host Controller Interface (HCI)
  • Boot image copy Support after power on reset.
  • Thresholds to generate interrupt.
  • Control and Status Registers to configure the modules.
  • Configurable Transmit/Receive Data FIFO.
  • Software and Hardware Reset.
  • Fully synthesizable.
  • Static synchronous design.
  • Scan test ready.
  • Simple interface allows easy connection to microprocessor/microcontroller devices.
Benefits
  • Single Site license option is provided to companies designing in a single site.
  • Multi Sites license option is provided to companies designing in multiple sites.
  • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
  • Unlimited Designs,license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
Deliverables

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's SERIAL FLASH CONTROLLER IP contains following

  • The SERIAL FLASH CONTROLLER interface is available in Source and netlist products.
  • The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided.
  • Easy to use Verilog Test Environment with Verilog Testcases
  • Lint, CDC, Synthesis, Simulation Scripts with waiver files
  • IP-XACT RDL generated address map
  • Firmware code and Linux driver package
  • Documentation contains User's Guide and Release notes.
