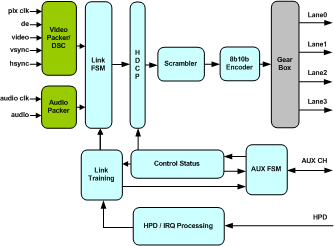

eDP TRANSMITTER IIP

eDP TRANSMITTER IIP

eDP Transmitter core is compliant with standard eDP 1.4b specification. Through its compatibility, it provides a simple interface to a wide range of low-cost devices. eDP Transmitter IIP is proven in FPGA environment. The Transmitter interface of the eDP can be simple interface or can be AMBA APB, AMBA AHB, AMBA AXI, VCI, OCP, Avalon, PLB, Tilelink, Wishbone or Custom protocol.

eDP TRANSMITTER IIP is supported natively in Verilog and VHDL

Features
  • Supports eDP 1.4b specification
  • Supports full eDP Transmitter functionality
  • Supports multi lanes upto 4 lanes.
  • Supports main link, Aux link and Hot plug functionality.
  • Supports packing of all the video formats supported by the display port
  • Supports HPD based link training.
  • Supports interlane skew insertion in source mode
  • Supports scrambler as in Display port specification
  • Supports scrambler reset after every 512th symbols.
  • Supports RGB, YCBCR444, YCBCR422, YCBCR420, Y-Only and RAW color format.
  • Supports PSR (Panel Self Refresh) entry and exit.
  • Supports frame number identification in PSR.
  • Supports Selective update (partial frame update) during Panel Self Refresh (PSR)
  • Supports PSR2(Panel Self Refresh) as per spec eDPv1.4b
  • Supports Multi SST operation(MSO)
    • Two SST Links with one Lane each (two Lanes total), 2x1
    • Two SST Links with two Lanes each (four Lanes total), 2x2
    • Four SST Links with one Lane each (four Lanes total), 4x1
  • Supports Advanced Link Power Management to reduce wake latency
  • Supports GTC-based video timing synchronization
  • Supports Display stream compression as per spec eDPv1.4b
  • Supports PSR Secondary Data Packet.
  • Supports Display Backlight Control Using DPCD Registers.
  • Supports 10bit, 20bit, 40bit, and 80bit parallel interfaces
  • Supports high-bandwidth Digital Content Protection System version1.3 (HDCP v1.3)
  • Supports high-bandwidth Digital Content Protection System version2.2 (HDCP v2.2)
    • Supports for HDCP2.2 with full authentication
    • Supports for HDCP2.2 with bypass the authentication
  • Supports high-bandwidth Digital Content Protection System version2.3 (HDCP v2.3)
  • This core achieves ASIL B and can be made to achieve ASIL D as per ISO26262
Benefits
  • Single site license option is provided to companies designing in a single site.
  • Multi sites license option is provided to companies designing in multiple sites.
  • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
  • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
Deliverables

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's eDP Transmitter IP contains following

  • The eDP Transmitter interface is available in Source and netlist products.
  • The Source product is delivered in plain text verilog. If needed VHDL,SystemC code can also be provided.
  • Easy to use Verilog Test Environment with Verilog Testcases
  • Lint, CDC, Synthesis, Simulation Scripts with waiver files
  • IP-XACT RDL generated address map
  • Firmware code and Linux driver package
  • Documentation contains User's Guide and Release notes.
  • ISO26262 Safety Manual (SAM) Document
  • ISO26262 Failure Modes, Effects and Diagnostics Analysis (FMEDA) Document
