DMA Controller with AXI IIP

DMA Controller with AXI IIP

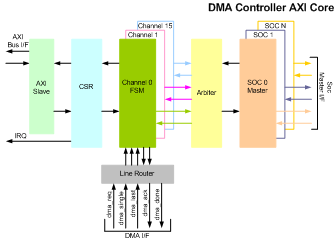

DMA Controller with AXI interface is full featured, easy-to-use, synthesizable design that can be used with AXI based systems as a controller to transfer data directly from system memory to IP core or from IP core to system memory. Through its compatibility, it provides a simple interface to any IP core with the appropriate logic in between.

DMA Controller with AXI IIP is supported natively in Verilog and VHDL

Features
  • Supports 1-16 channel DMA Transmit and DMA Receive Engine
  • Supports latest ARM AMBA 3/4 AXI, AXI4-Lite, AMBA4 ACE, AMBA4 ACE-Lite, AXI4-Stream specification.
  • Supports access for Ring and Chained Descriptor Structures
  • Configurable Transmit and Receive Engine based on Host Memory Data Width
  • Configurable support by DMA Transmit and Receive Engine for both of the endianness of the host memory (Little / Big Endian)
  • Supports configurable DMA Transmit and DMA Receive FIFO based on Host Memory Data width
  • Supports hardware DMA Control registers that can be written and read by CPU
  • Round Robin algorithm for arbitration between DMA Transmit and Receive Engine to access SOC Master Bus
  • SOC Master bus can be AXI/AHB/APB/OCP/Tilelink/Wishbone
  • Supports AXI Slave bus
  • Uses SOC Slave Interface to get Receive and Transmit descriptors and transfer the data to/from the system memory from/to FIFO inside the DMA controller
  • User logic to map data fetched from Host to IP core or from IP core to host
  • Supports following DMA transfers
    • Memory to Memory
    • Memory to Peripheral
    • Peripheral to Memory
    • Peripheral to Peripheral
  • Supports Sideband DMA request and Grant based triggering of transfers as on option for peripherals
  • Supports Scatter Gathers list
  • Supports 8/16/32/64/128/256 bit wide data transfers
  • Supports QoS per channel if SOC master interface supports Qos.
  • Supports programmable burst capability per SOC master
  • Supports both single data and burst data transfers, with burst size based on the burst length field in the DMA control registers
  • DMA supports full duplex operation, processing read and write transfers at the same time
  • Supports Link list based processor for autonomous operation
  • Interface widths can be controller for each SOC master interface
  • Supports access for Ring and Chained Descriptor Structures
  • Configurable Transmit and Receive Engine based on Host Memory Data Width
  • Configurable support by DMA Transmit and Receive Engine for both of the endianness of the host memory (Little / Big Endian)
  • Supports configurable DMA Transmit and DMA Receive FIFO based on Host Memory Data width
  • Supports hardware DMA Control registers that can be written and read by CPU
  • Supports different algorithms for selecting which channel to process and how long to process.
  • Generate full 32-bit addresses on the SOC master interface
  • Supports per Channel Interrupt output
  • Supports up to 64 MB transfer per Buffer Descriptor (BD)
  • Supports both single data and burst data transfers, with burst size based on the burst length field in the DMA control registers
  • DMA supports full duplex operation, processing read and write transfers at the same time
  • Interrupts CPU on completion of a DMA transfer or an error
  • Fully synthesizable
  • Static synchronous design
  • Functional safety features (B: No certification, with safety features, in line with the development process)
Benefits
  • Single Site license option is provided to companies designing in a single site
  • Multi Sites license option is provided to companies designing in multiple sites
  • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC
  • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs
Deliverables

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's DMA Controller with AXI IP contains following

  • The DMA Controller with AXI interface is available in Source and netlist products
  • The Source product is delivered in verilog. If needed VHDL, SystemC code can also be provided
  • Easy to use Verilog Test Environment with Verilog Testcases
  • Lint, CDC, Synthesis, Simulation Scripts with waiver files
  • IP-XACT RDL generated address map
  • Firmware code and Linux driver package
  • Documentation contains User's Guide and Release notes
