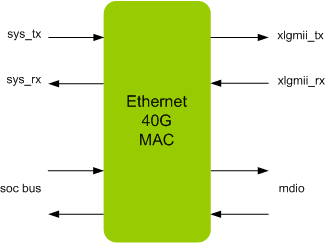

ETHERNET 40G MAC IIP

ETHERNET 40G MAC IIP

Ethernet 40G MAC core is compliant with IEEE Standard 802.3.2018 Ethernet specification. Through its Ethernet compatibility, it provides a simple interface to a wide range of low-cost devices. Ethernet 40G MAC IIP is proven in FPGA environment. It can also supports a variety of host bus interfaces for easy adoption into any design architecture - AHB,AHB-Lite,APB,AXI,AXI-Lite,Tilelink,OCP,VCI,Avalon,PLB,Wishbone or custom buses

ETHERNET 40G MAC IIP is supported natively in Verilog and VHDL

Features
  • Compliant with IEEE Standard 802.3-2018 specification
  • Supports full duplex mode operation
  • Supports XLGMII (Clause 81) interface
  • Supports Programmable Inter Packet Gap(IPG) and Preamble length
  • Supports MDIO (Clause 22 and Clause 45) Interface
  • Supports start control character alignment
  • Provides detailed statistics as per the specification
  • Supports Loopback functionality
  • Supports Control frame and Jumbo Frame
  • Supports transmit and receive FIFO interface
  • Supports FCS(CRC) transmission and reception
  • Supports Pause frame based flow control
  • Supports IEEE Standard 802.3az Energy Efficient Ethernet(EEE)
  • Supports IEEE Standard 802.1Q and IEEE Standard 802.1ad VLAN
  • Supports Wake-on-LAN support
  • Supports AXI stream Interface for System Interface
  • In house UNH compliance tested
  • Optional support for TCP/IP
  • Optional support for IEEE Standard 1588-2008 PTP
  • Optional DMA support for both transmit and receive side
  • Fully synthesizable
  • Static synchronous design
  • Positive edge clocking and no internal tri-states
  • Scan test ready
  • Simple interface allows easy connection to microprocessor/microcontroller devices
Benefits
  • Single site license option is provided to companies designing in a single site.
  • Multi sites license option is provided to companies designing in multiple sites.
  • Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
  • Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
Deliverables

    Note: Only mails from offical mail ID will be processed

    Request Datasheet
    Request Evaluation

    SmartDV's Ethernet 40G MAC IP contains following

  • The Ethernet interface is available in Source and netlist products.
  • The Source product is delivered in plain text verilog.If needed VHDL,SystemC code can also be provided.
  • Easy to use Verilog Test Environment with Verilog Testcases
  • Lint, CDC, Synthesis, Simulation Scripts with waiver files
  • IP-XACT RDL generated address map
  • Firmware code and Linux driver package
  • Documentation contains User's Guide and Release notes.
