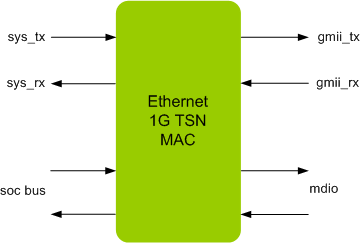

Ethernet 1G TSN MAC core is a full-featured, easy-to-use, synthesizable design that supports various Ethernet TSN IEEE standards and supports 10/100/1000M speeds. Through its Ethernet compatibility, it provides a simple interface to a wide range of low-cost devices. Ethernet 1G TSN MAC IIP is proven in FPGA environment. It can also supports a variety of host bus interfaces for easy adoption into any design architecture - AHB,AHB-Lite,APB,AXI,AXI-Lite,Tilelink,OCP,VCI,Avalon,PLB,Wishbone or custom buses
ETHERNET 1G TSN MAC IIP is supported natively in Verilog and VHDL
- Features
-
- Compliant with IEEE Standard 802.3-2018 Specification
- Supports Preemption as per IEEE Standard 802.1Qbu and IEEE Standard 802.3br Interspersing Express Traffic
- Supports timing synchronization as per IEEE Standard 1588-2008(PTP) and IEEE Standard 802.1AS(GPTP)
- Supports Traffic Scheduling - IEEE Standard 802.1Qbv(Enhancement for Scheduled Traffic) and IEEE Standard 802.1Qav (Credit Based Shaping)
- Supports class based flow control and class based FIFO to store each class, total 8 class - IEEE Standard 802.1Q
- Supports Full duplex and Half duplex mode
- Ultra low latency and compact implementation
- Supports MDIO (Clause 22 and Clause 45) Interface
- Supports Programmable Inter Packed Gap(IPG) and Preamble length
- Supports GMII/MII/RGMII Interfaces
- FCS generation supported
- Independent TX and RX Maximum Transmission Unit (MTU)
- TSN features can be enabled/disabled independently
- Cut-through support
- Configurable Transmit and Receive FIFOs
- Comprehensive statistics gathering
- Supports 32bit AXI4 Stream for Packet data
- Optional DMA support for both transmit and receive side
- In house UNH compliance tested
- Supports T1S
- Fully synthesizable
- Static synchronous design
- Positive edge clocking and no internal tri-states
- Scan test ready
- Simple interface allows easy connection to Microprocessor/Microcontroller devices
- Benefits
-
- Single site license option is provided to companies designing in a single site.
- Multi sites license option is provided to companies designing in multiple sites.
- Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
- Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.
- Deliverables
-
SmartDV's Ethernet 1G TSN MAC IP contains following
- The Ethernet interface is available in Source and netlist products.
- The Source product is delivered in plain text verilog.If needed VHDL,SystemC code can also be provided.
- Easy to use Verilog Test Environment with Verilog Testcases
- Lint, CDC, Synthesis, Simulation Scripts with waiver files
- IP-XACT RDL generated address map
- Firmware code and Linux driver package
- Documentation contains User's Guide and Release notes.
